| Model: | OWB9070-24V | Voltage: | 24VDC |
|---|---|---|---|
| Air flow: | 115L/min | Air Pressure: | 13.5kpa |
| Type: | Turbine Blower | Driver: | External |

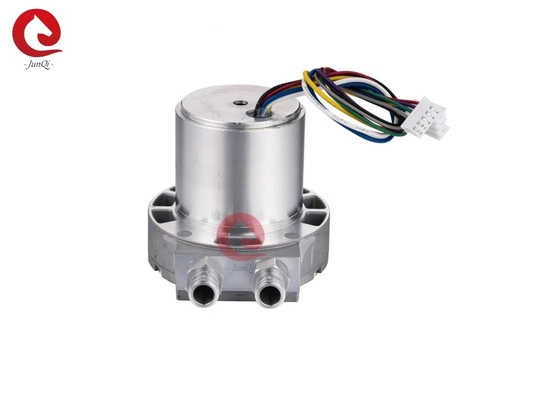

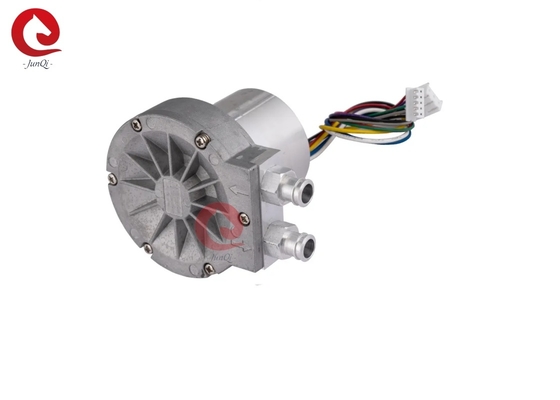

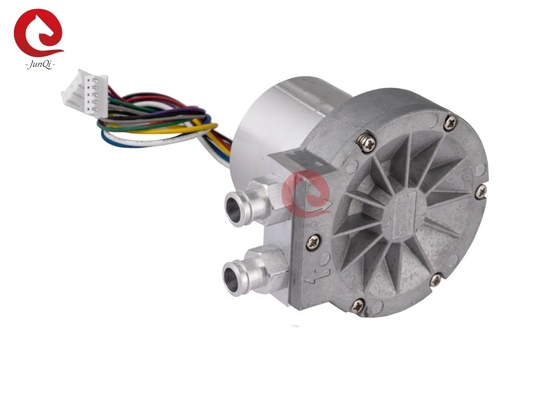

JUNQI 24V Brushless Electric Centrifugal Mini Industrial Blower OWB9070 Aluminum Blades Cooling Fan
Prodcut Decriptions:
| Part Name | Brushless DC Turbine blower |
| Model | OWB9070-24V |
| Rated Voltage | 24VDC |
| Current range | 1.4A~2.5A |
| Bearing | NMB Ball Bearing |
| Insulation class | Class F |
| Driver board | External |
| Speed control | PWM or 0~5V |
| Service Life | more than 10000h |
| Weight | 800g |
| @ Free blowing | @Working point | @Staic pressure | ||||||
| Speed | Current | Air flow | Current | Air flow | Pressure | Speed | Current | Pressure |
| (rpm) | (A) | (m³/h) | (A) | (m³/h) | (kPa) | (rpm) | (A) | (kPa) |
| 28000 | 1.4 | 6.9 | 2 | 3.6 | 2 | 26000 | 2.5 | 13.5 |
Dimensions:
Pin Port description:
Notes:
1.Don't use max pressure and working point, this point is not safe since airflow is too small;
2.To add a filter onto the inlet can make the blower run longer time;
3. The right impeller run direction is CCW.
P-Q performance curve:
OWB9070-24V Blower can reach maximum 115L/min airflow at 0 kpa pressure and maximum 13.5kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 13.5kPa resistance if we set 100% PWM. Other load point performance
DC Brushless Blower Advantages:
(1) OWB9070-24 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 10,000 hours at 20 degree C environmental temperature.
(2) This mini blower needs no maintence

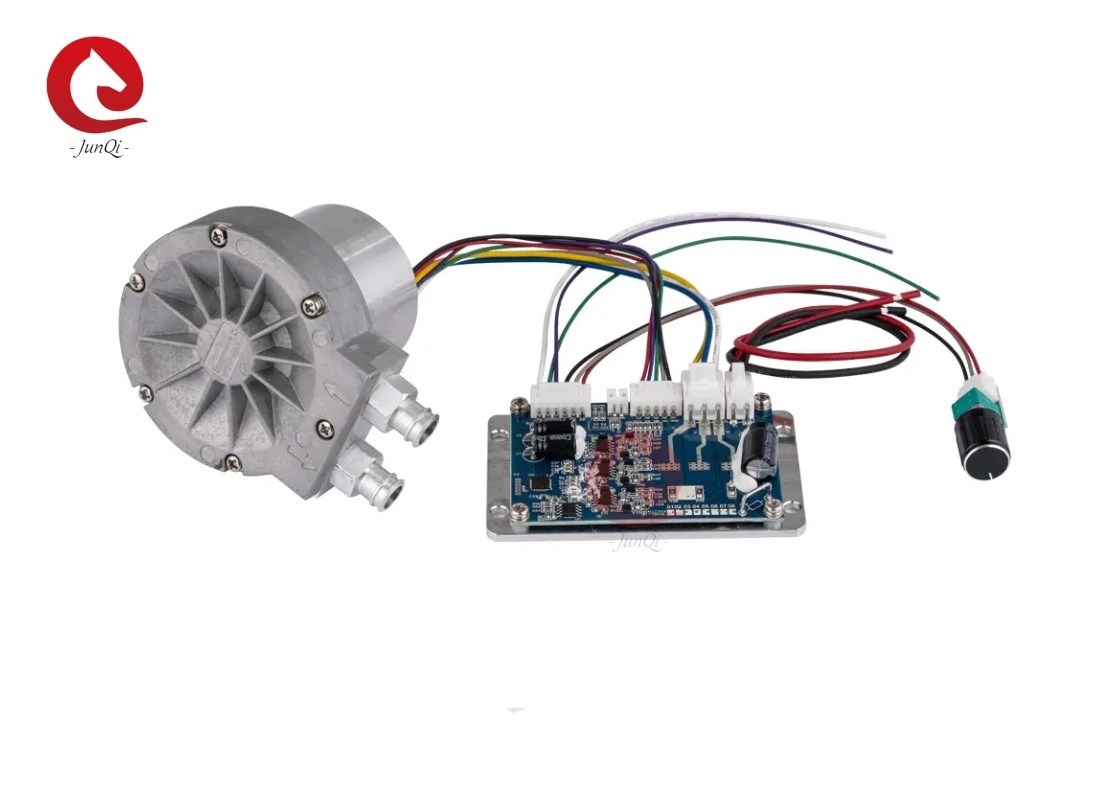

(3) This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
