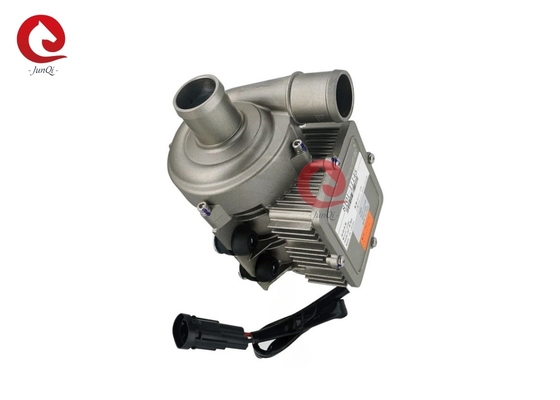

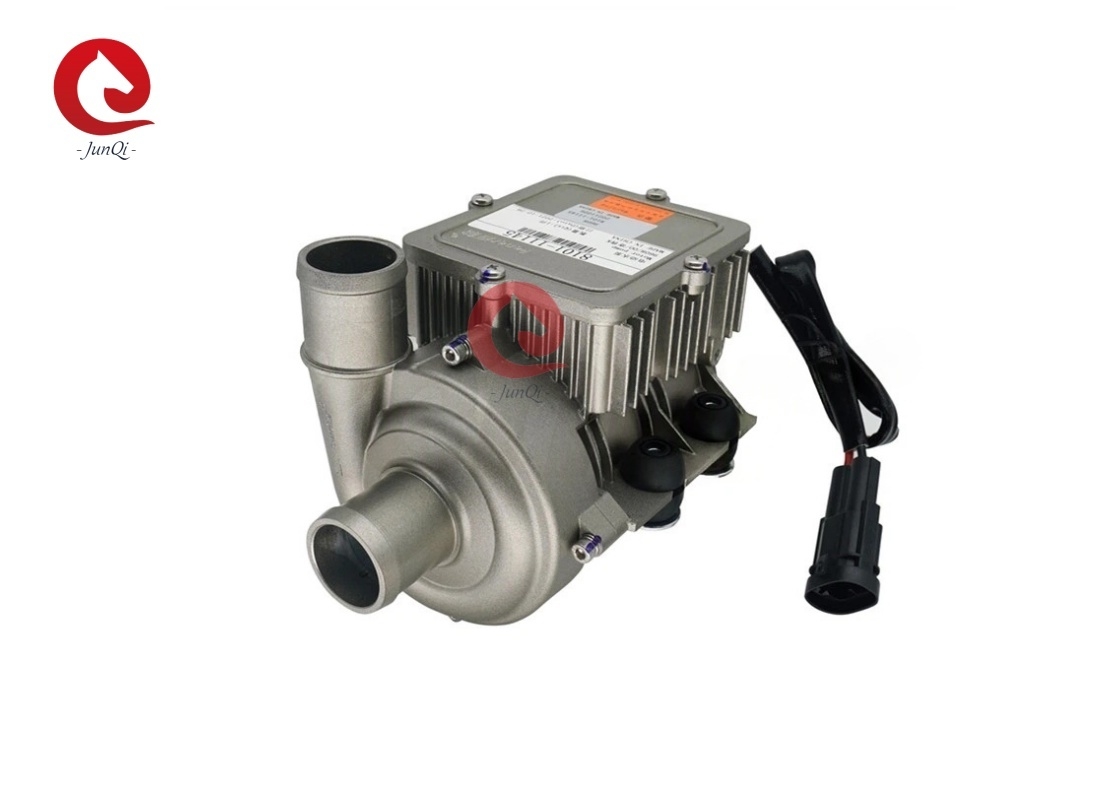

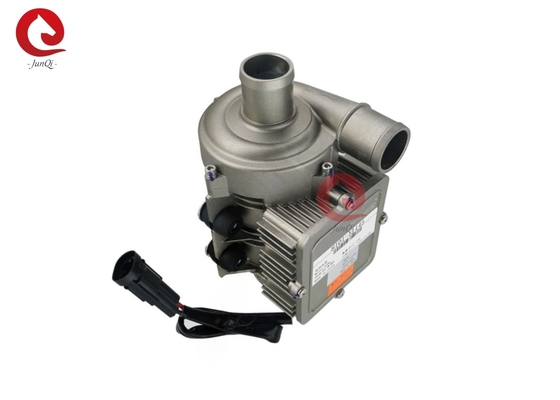

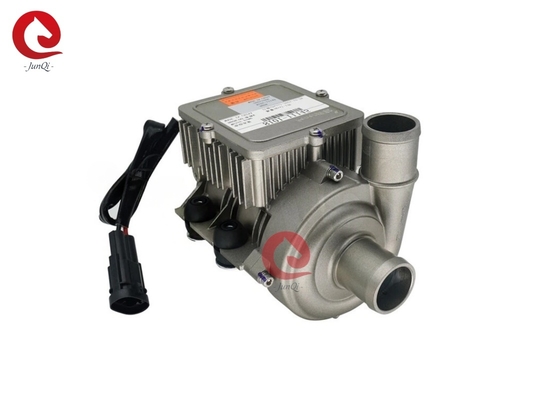

JUNQI DC24V 920W 6500L/h 23m lift Electric Water Pump For Vehicle Thermal Management System

JUNQI DC24V 920W 6500L/h 23m lift Electric Water Pump For Vehicle Thermal Management System

  • JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System
  • JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System
  • JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System
  • JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System
JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System
商品の詳細:
Place of Origin: CHINA
ブランド名: JUNQI
証明: IS9001
Model Number: JP1000-24V-920W
お支払配送条件:
Minimum Order Quantity: 2 pcs
価格: 交渉可能
Packaging Details: Carton+packing foams
Delivery Time: 5-30days
Payment Terms: T/T,paypal
Supply Ability: 1000PCS/Month
連絡先
詳細製品概要
Product Name: BLDC water pump 証明: ISO9001, CE, UL
Model: JP1000-24V-920W Voltage: 24VDC
Working voltage Range: 18~32VDC Power: 920W
Weight: 4.2 kg Lift: 23m

JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System


Technical Parameters:


Model: JP1000-24V-920W

Rated Voltage: 24VDC

Working voltage range: 18~32VDC

Protection level: IP68

Ambient temperature: -40~85℃

Medium: 50% glycol aquesous lolution

Rated Current: 38.3A

Noise: ≤70dB

Rated Flow rate: 6500L/h   H=23.5m

Rated Power: 920W

Working life: ≥20000h

Weight: 4.2kg


Features:

♦ Highly integrated shield pump,hihg reliability, mainteanance-free, soft satart protection, low starting current;

♦ High efficiency: hydraulic+motor+controller;

♦ With anti-reverse connection, over current, over voltage, under voltage, over temperature, blocking rotot protection;

♦ Full range adjustable speed ( support fixed speed customization);

♦ BLDC-PMSM+Non-inductive FOC, lightweight, low noise;

♦ Industry-leading ECU gauge devices, a variety of communication methods of ECU platform design;

♦ To meet the needs of intelligent vehicle connection: CAN communication, non-sensing temperature measurement.


Working performance curve:

JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System 0

Dimensions(mm):

JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System 1

Workshop pictures:

JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System 2

Certificates:

JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System 3

FAQ:


Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit


Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.


Q: What’s Moq?

A: 5PCS. Small Order Welcome.


Q:Do You Make Customized Product?

A:Yes,We Accpet it.


Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.


Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details


Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.
